GO Ball Valves Actuated Double Acting Pneumatic Flanged ANSI 150# 3 Way BLS3FADA
HomeStore

GO Ball Valves Actuated Double Acting Pneumatic Flanged ANSI 150# 3 Way BLS3FADA

GO Ball Valves Actuated Double Acting Pneumatic Flanged ANSI 150# 3 Way BLS3FADA

Select Size
Select Body Material
From $98.82

Original: $282.34

-65%
GO Ball Valves Actuated Double Acting Pneumatic Flanged ANSI 150# 3 Way BLS3FADA—

$282.34

$98.82

The Story

High performance 3 way full bore 316 Stainless Steel ball valve with ANSI 150 flanged connections and a double acting pneumatic actuator. Self adjusting stem packing assembly with belleville spring for temperature fluctuations and vibration. Pre drilled metric ISO5211 direct mounting pad to minimise any thermal transfer from valve to actuator. Reinforced PTFE seats for temperatures up to 180°C. Anodized aluminium rack and pinion actuator with visual indicator, namur interface and stop adjustments.

GO Ball Valves Actuated Double Acting Pneumatic Flanged ANSI 150# 3 Way BLS3FADA - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

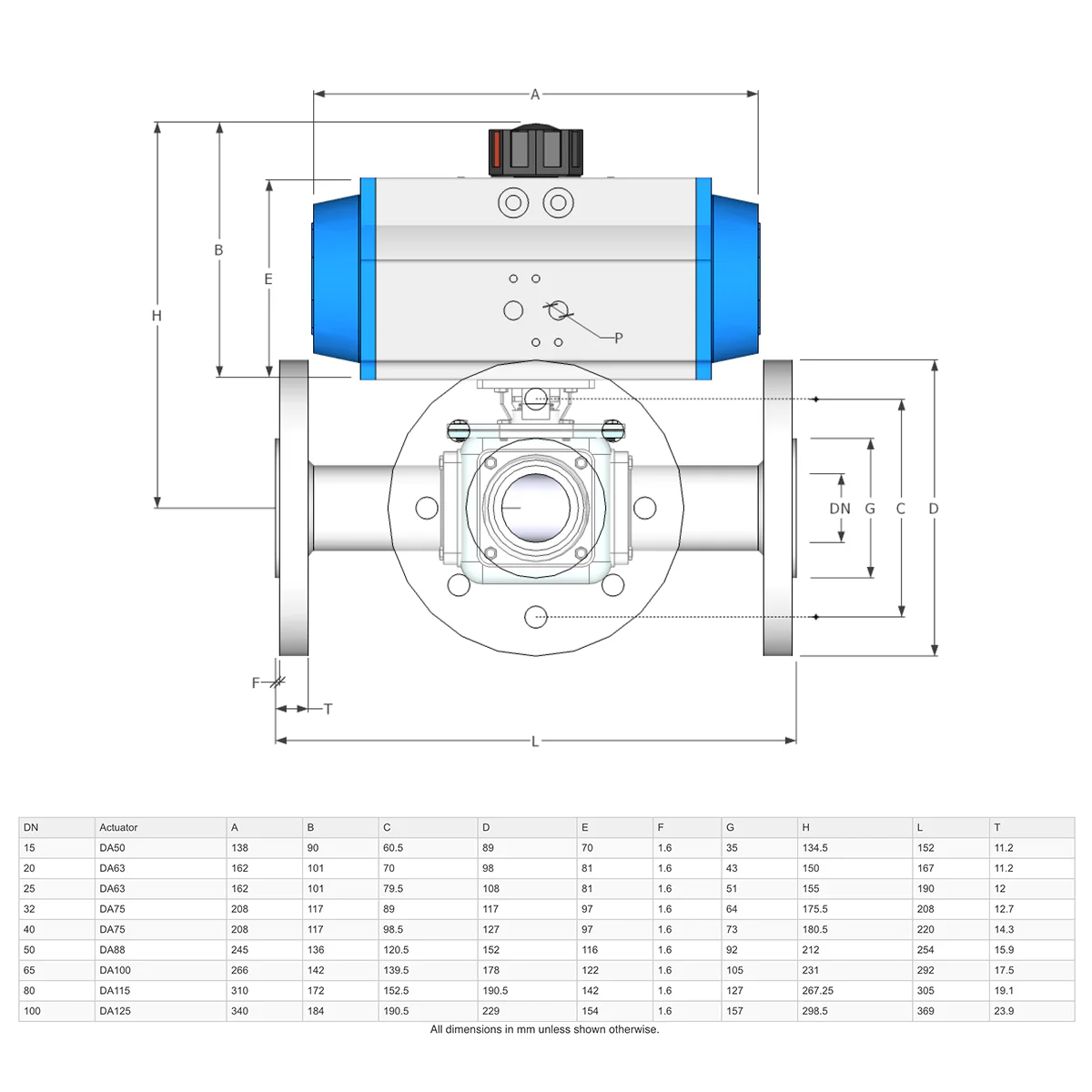

GO Ball Valves Actuated Double Acting Pneumatic Flanged ANSI 150# 3 Way BLS3FADA - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

High performance 3 way full bore 316 Stainless Steel ball valve with ANSI 150 flanged connections and a double acting pneumatic actuator. Self adjusting stem packing assembly with belleville spring for temperature fluctuations and vibration. Pre drilled metric ISO5211 direct mounting pad to minimise any thermal transfer from valve to actuator. Reinforced PTFE seats for temperatures up to 180°C. Anodized aluminium rack and pinion actuator with visual indicator, namur interface and stop adjustments.
