GO Ball Valves Actuated Double Acting Pneumatic 316 Stainless 3 Piece Full Bore BLSDA
HomeStore

GO Ball Valves Actuated Double Acting Pneumatic 316 Stainless 3 Piece Full Bore BLSDA

GO Ball Valves Actuated Double Acting Pneumatic 316 Stainless 3 Piece Full Bore BLSDA

Select Size
From $48.16

Original: $137.60

-65%
GO Ball Valves Actuated Double Acting Pneumatic 316 Stainless 3 Piece Full Bore BLSDA—

$137.60

$48.16

The Story

High performance 3 piece full bore 316 Stainless Steel ball valve with BSP threaded connections and a double acting pneumatic actuator. Self adjusting stem packing assembly with Belleville spring for temperature fluctuations and vibration. Pre drilled metric hole on ISO5211 direct mounting pad to minimise any thermal transfer from valve to actuator. Reinforced PTFE seats for temperatures up to 180°C. Anodised aluminium spring return pneumatic actuator which allows a fail safe position if air is lost.

GO Ball Valves Actuated Double Acting Pneumatic 316 Stainless 3 Piece Full Bore BLSDA - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

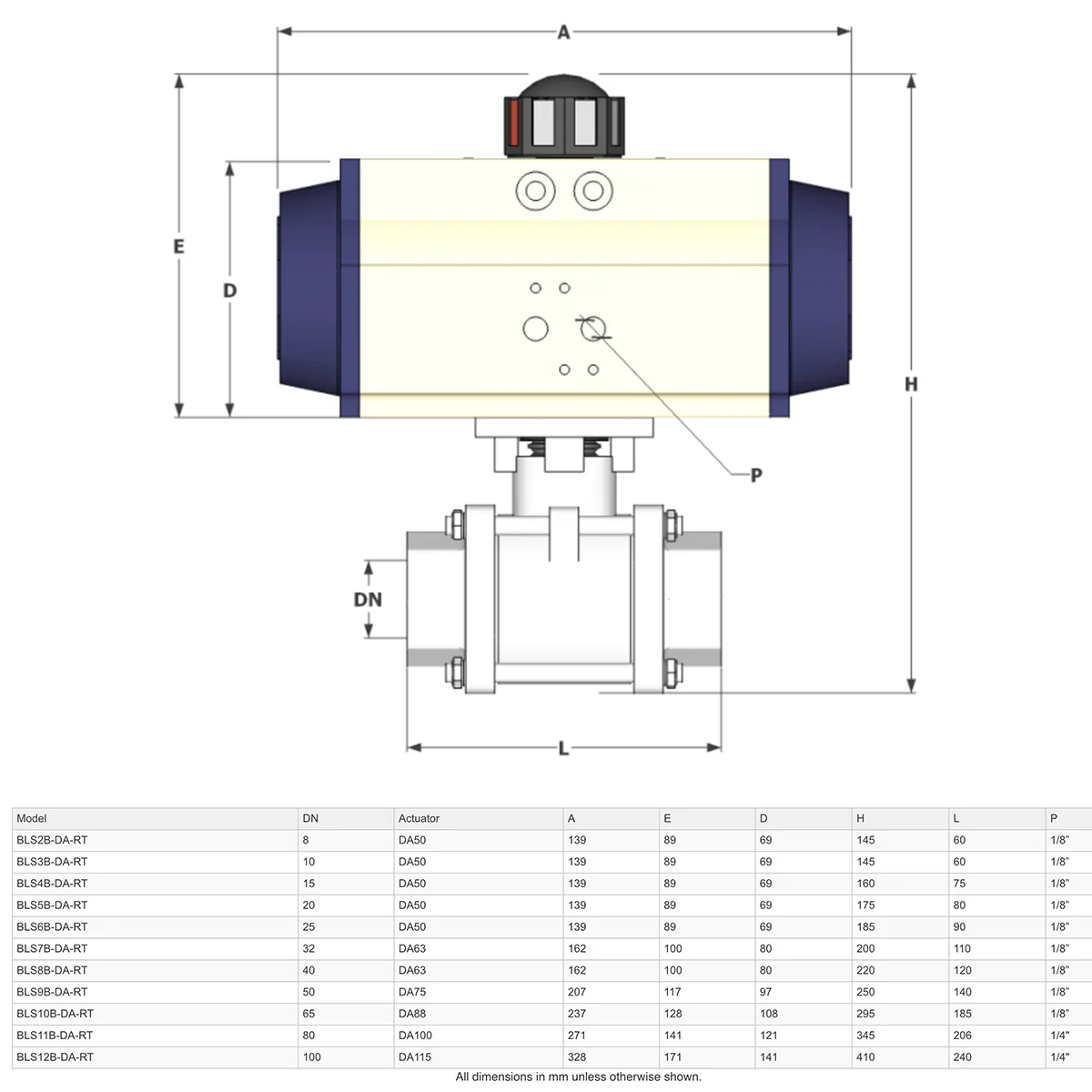

GO Ball Valves Actuated Double Acting Pneumatic 316 Stainless 3 Piece Full Bore BLSDA - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

High performance 3 piece full bore 316 Stainless Steel ball valve with BSP threaded connections and a double acting pneumatic actuator. Self adjusting stem packing assembly with Belleville spring for temperature fluctuations and vibration. Pre drilled metric hole on ISO5211 direct mounting pad to minimise any thermal transfer from valve to actuator. Reinforced PTFE seats for temperatures up to 180°C. Anodised aluminium spring return pneumatic actuator which allows a fail safe position if air is lost.
